Asus A8MZN-LA Motherboard Specs

A8MZN-LA motherboard is AM2 socket motherboard from Asus and its also comes for HP computers with the NodusM-GL8E named. The specs of A8MZN-LA is not so special but it has complete for standard user who need a nice motherboard with simplicity and small package, Asus A8MZN-LA equipped with Micro-ATX form factors. So check this out the full Asus A8MZN-LA motherboard specifications, it's all based from HP official site.

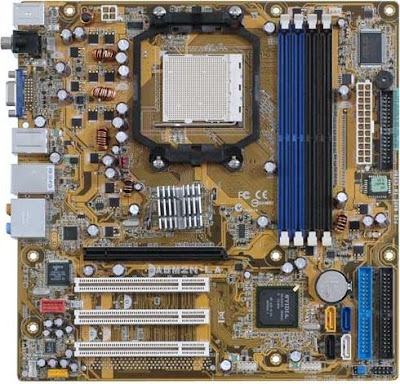

A8MZN-LA Motherboard
Asus A8MZN-LA Motherboard
Main features : AMD AM2 socket motherboard, supports for Sempron, Athlon 64 and Athlon 64 X2 up to 5000+ AMD processors, GeForce 6150 LE chipset, support for PC2 5300 (667 MHz) DDR2, PCI Express x16, on-board graphics card, SATA connectors,HD Audio and more.

Other Specifications :
- FSB : 2000 MegaTransfers/second
- Memory : 4 x 240-pin DDR2 DIMM sockets, 4GB max
- Expansion slot : 3 x PCI + 1 X PCI-e x16
- SATA : 4 x SATA connectors
- Audion : ALC883 or ALC888 CODEC
- LAN : 10/100 Marvell 88EC031
- Form factors : Micro-ATX (9.6 in X 9.6 in)

Rear I/0 : PS/2 keyboard, PS/2 mouse, SPDIF (coaxial) out, S-Video port, VGA port, 4 x USB 2.0, IEEE 1394a, RJ-45 networking port, 6 Audio I/O.

Internal connectors : 24-pin ATX power, 4-pin ATX power, 2 x PATA, 4 x SATA, floppy drive, 2 x 12v fan, 9-pin header (power, reset, power LED, HDD LED), front line input, 9-pin audio header, SPDIF output header, USB 2.0 connectors supporting 4 additional USB 2.0 ports, IEEE 1394a connector.

The Asus A8MZN-LA motherboard specs looks good enough, it has powered by on-board graphics card for casual users but its also PCI-e x16 ready for adding external graphics card for better gaming experience,there is no USB 3.0 or SATA 3.0, but I thing it's still good for entry level AM2 motherboards. Enjoy.
